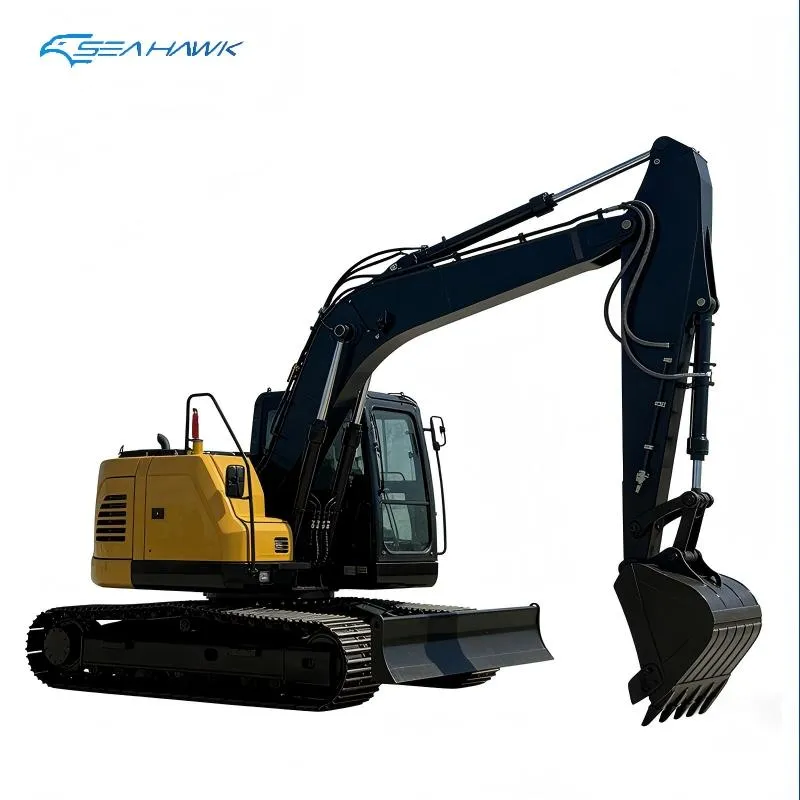

DX140LCR Zero Tail Swing Crawler Excavator

DX140LCR Zero Tail Swing Crawler Excavator
The DX140LCR is a powerful and compact crawler excavator designed for superior performance in confined spaces. With its zero tail swing design, it excels in urban construction, road maintenance, and tight job sites where space is limited.

Key Features
Engine: Powered by a Cummins diesel engine, compliant with Stage III emission standards. Delivers 81.6 kW (109 hp) at 2000 rpm with high-pressure fuel injection and turbocharging for optimal fuel efficiency and power.

Hydraulic System: Advanced e-EPOS (Electronic Power Optimising System) intelligently manages engine and hydraulic performance. Features include cross-sensing pumps, auto deceleration, and 4 operating modes for maximum efficiency.

Undercarriage: Rugged and durable with 7 lower rollers, 1 upper roller, and hydraulic track adjusters. Triple grouser shoes available in widths of 500mm, 600mm, and 700mm.

Swing Mechanism: Smooth and powerful with an axial piston motor and 2-stage planetary reduction, offering a maximum swing speed of 10.13 rpm.

Operator Cab: Comfortable and ergonomic with air conditioning, heated air suspension seat, and adjustable joystick consoles. Low noise levels ensure a productive work environment.

Working Range & Capacities
Max Digging Reach: 8.6 m

Max Digging Depth: 5.98 m

Max Loading Height: 7.08 m

Fuel Tank Capacity: 208 L

Hydraulic Oil Tank: 128 L

Versatile Configurations
Available with mono boom or articulated boom options, and arm lengths of 2.1 m, 2.5 m, and 3.0 m to suit a wide range of applications.

The DX140LCR combines compact design, fuel efficiency, and advanced hydraulics to deliver reliable performance in the most demanding environments.
