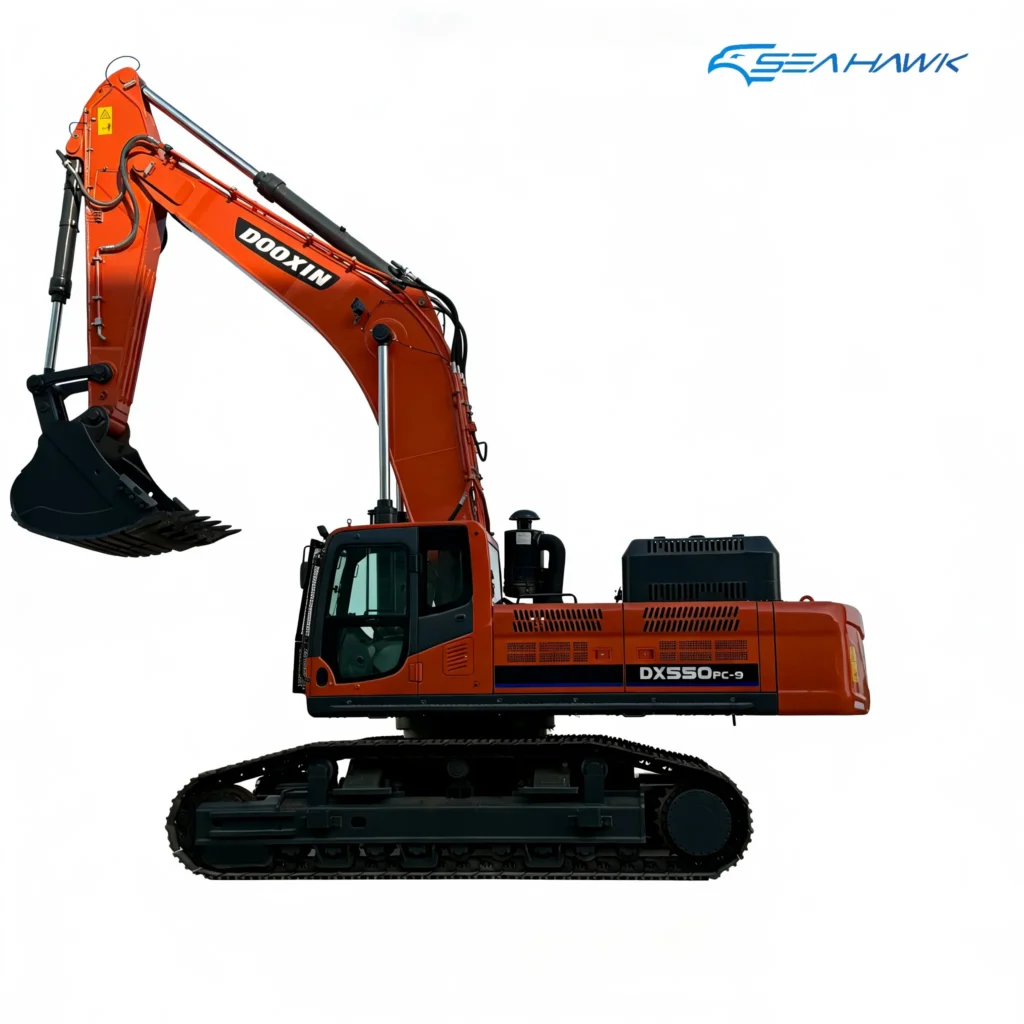

DX550PC-9 Heavy-Duty Mining Crawler Excavator
Key Features
- Powerful Isuzu Engine
- Exclusive Advanced Hydraulic System
- Exceptional Digging Force
- Heavy-Duty Undercarriage
- Reliable Swing & Travel Motors
Product Description
Dooxin DX550PC-9 Heavy-Duty Crawler Excavator – Maximum Power for Large-Scale Mining & Construction
The DX550PC-9 is a high-capacity crawler excavator engineered for the most demanding large-scale mining, quarry, and heavy construction projects. Combining a powerful Isuzu engine with exclusive hydraulic technology, it delivers exceptional digging force, stability, and fuel efficiency.
Key Features
Powerful Isuzu Engine: Rated at 300 kW, providing robust and reliable performance for continuous heavy-duty operation.
Advanced Hydraulic System: Exclusive efficient hydraulic control system with options for Kawasaki or Rexroth main pump and Kawasaki or KYB control valve, ensuring smooth and precise operation.
High Digging Force: Delivers 267 kN standard digging force for breaking through the toughest materials.
Superior Undercarriage: Features 9 lower track rollers, 600mm track shoes, and a high-strength frame with 770mm ground clearance to prevent mud and rock jamming.
Durable Swing & Travel: Equipped with Sunjin swing motor (Korea) and Doosan travel motor for powerful traction and reliable performance on rough terrain.
Designed for Efficiency & Easy Maintenance
Safe and open engine hood for quick access
Convenient and swift maintenance design
High-strength frame for long-lasting durability
The Dooxin DX550PC-9 combines immense power, advanced hydraulics, and rugged construction to maximize productivity in the world's toughest environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Weight | 48.9 t |
| Bucket Capacity | 2.4 m³ |
| Engine Model | ISUZU |
| Rated Power | 300 kW |
| Swing Speed | 10.3 min⁻¹ |
Working Range & Capacities
| Parameter | Value |
|---|---|
| Max Digging Depth | 7795 mm |
| Max Digging Height | 10787 mm |
| Max Unloading Height | 7915 mm |
| Max Digging Radius | 11800 mm |
Dimensions
| Parameter | Value |
|---|---|
| Transport Length | 12230 mm |
| Overall Width | 3900 mm |
| Cabin Height | 845 mm |
| Ground Clearance | 770 mm |
| Tail Swing Radius | 3800 mm |
