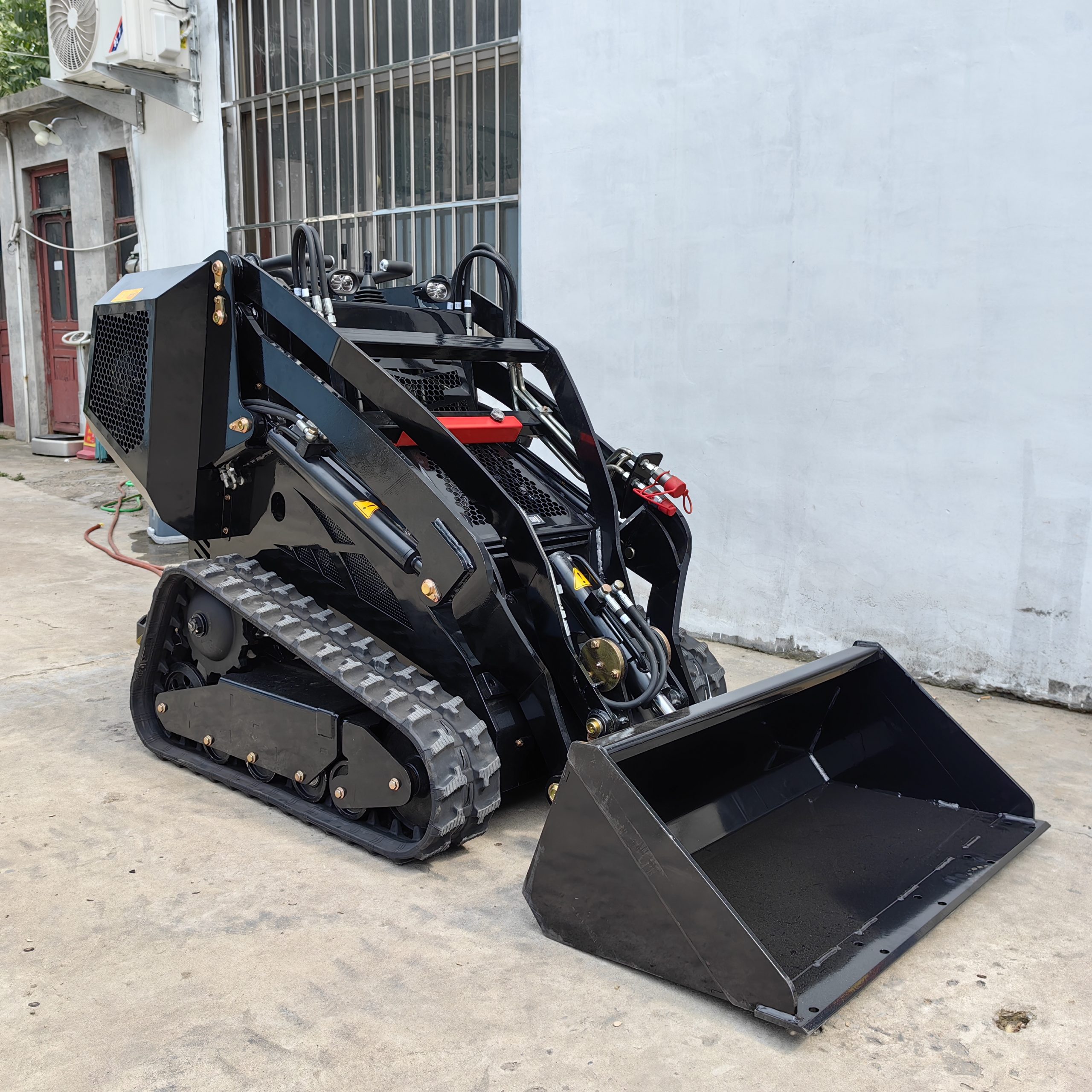

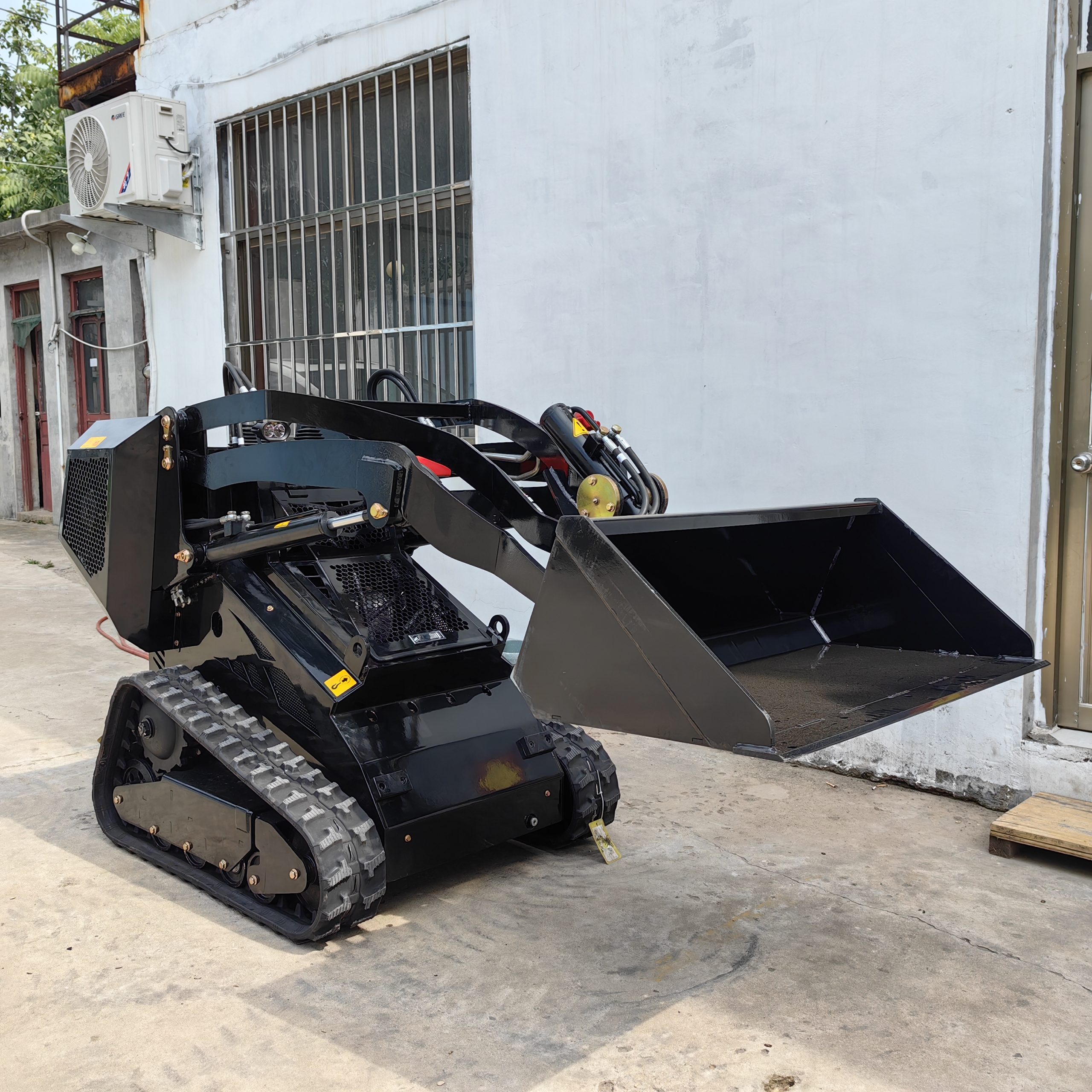

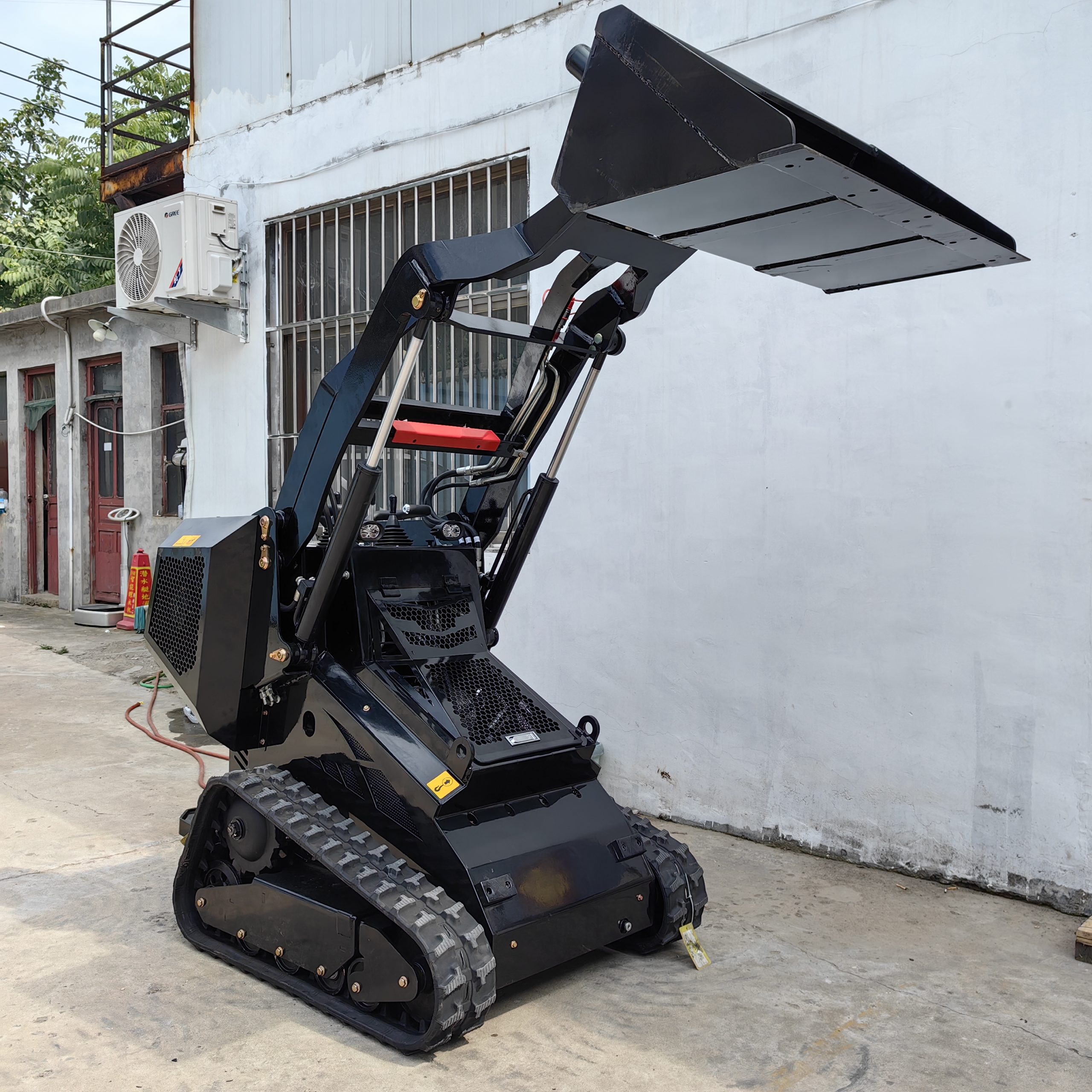

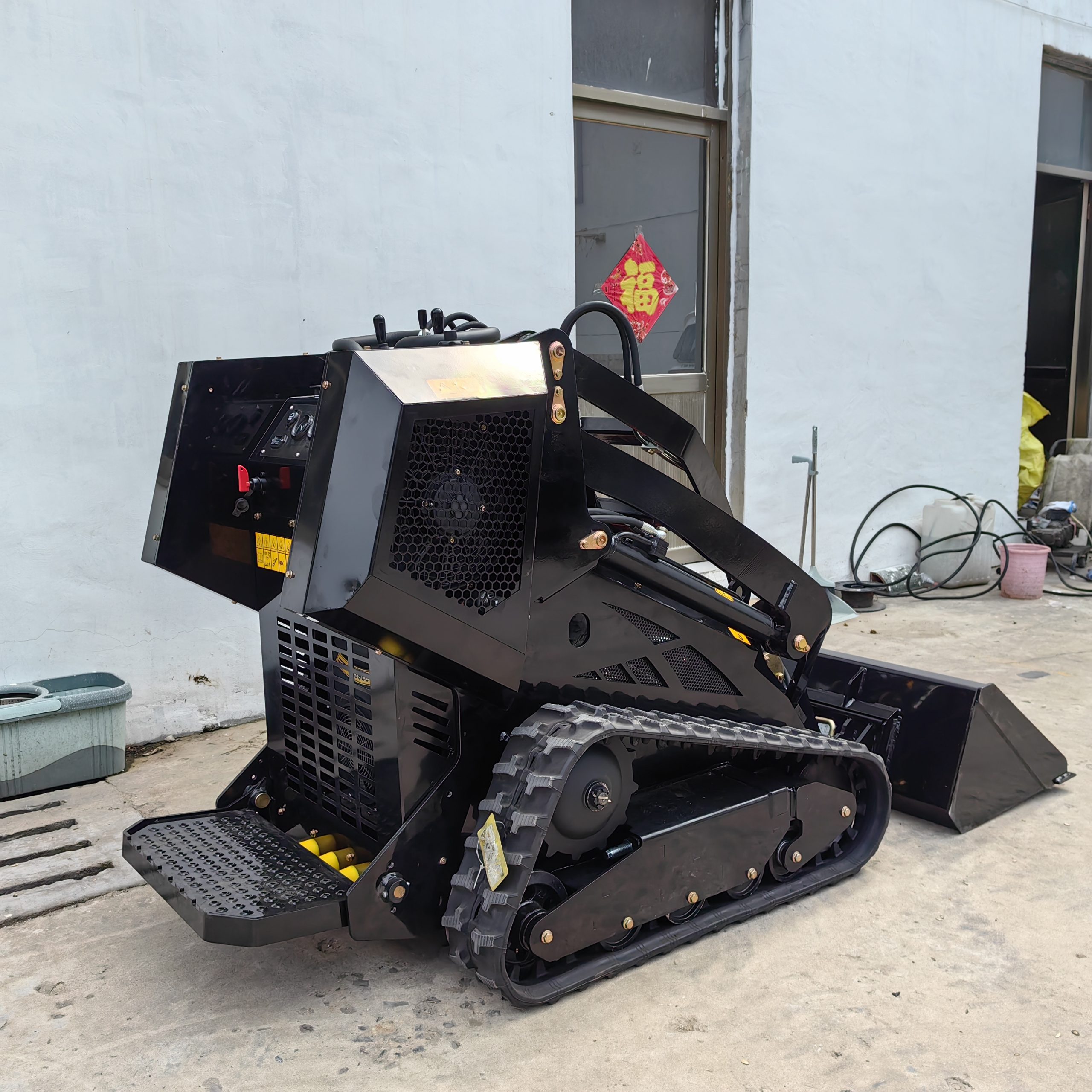

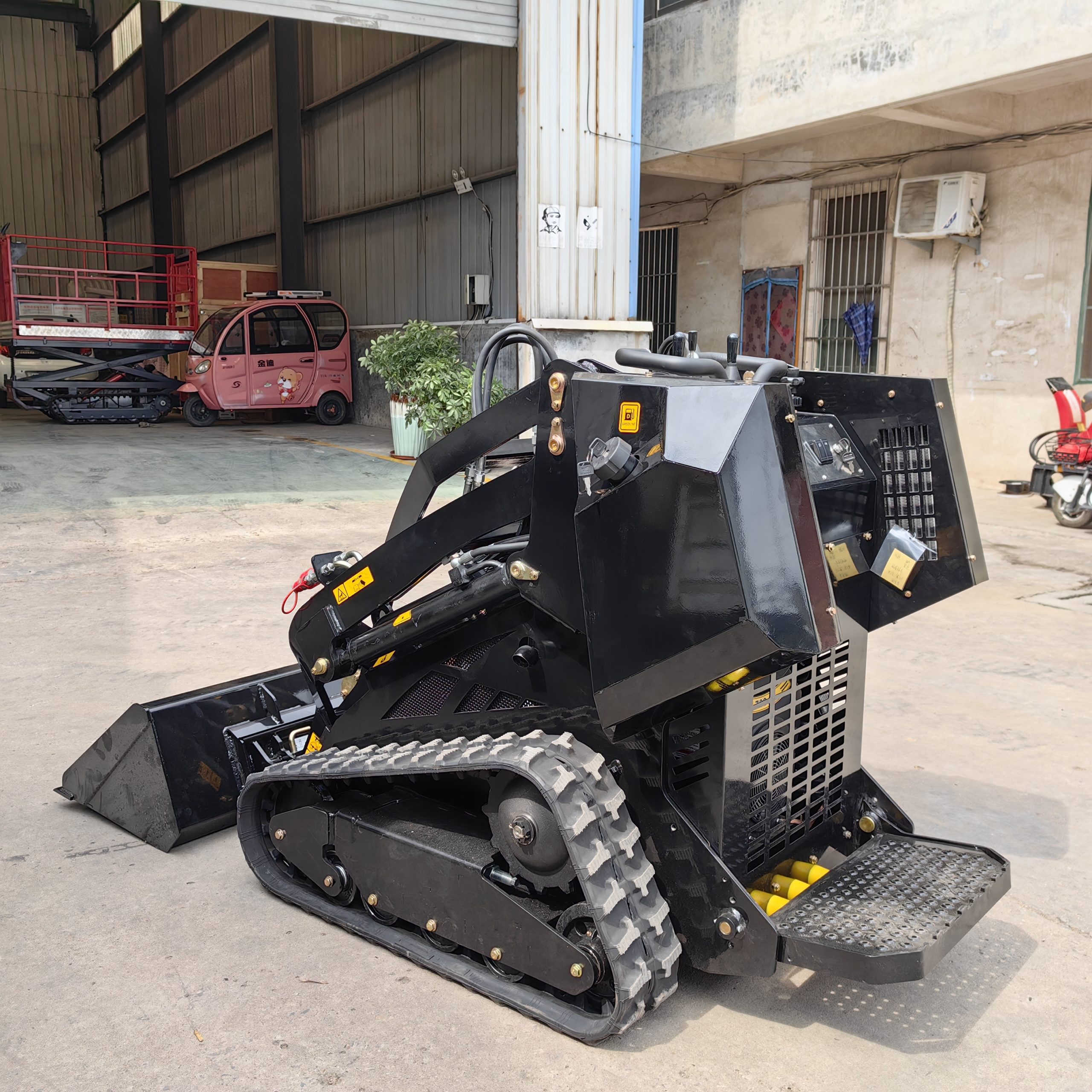

sh450 Skid-steer loader

HX450 Compact Track Loader – Powerful Performance in a Compact Package

The HX450 is a rugged and versatile compact track loader engineered for construction, landscaping, and earthmoving applications. Combining a powerful engine with a compact footprint and robust hydraulic system, this machine delivers exceptional performance in tight spaces and challenging terrain.

Compact Design, Maximum Reach

Despite its compact size, the HX450 offers impressive working ranges:

Maximum working height: 2474 mm (97.4 inches)

Maximum pin height: 1977 mm (77.83 inches)

Maximum dumping height: 1275 mm (50.2 inches)

Maximum dumping distance: 175 mm (6.89 inches)

With a total width of just 1030 mm (40.55 inches) and an overall length with bucket of 2319 mm (91.3 inches), the HX450 easily navigates narrow pathways and confined job sites. The foldable pedal design reduces transport length to 1633 mm (64.29 inches) when space is limited.

Powerful Engine Performance

At the heart of the HX450 is a high-output engine delivering 18.2 kW (23 HP) at 3600 rpm. This powerplant provides the muscle needed for demanding digging and loading tasks while maintaining fuel efficiency. With noise levels maintained at ≤95 dB, operator comfort is enhanced during extended work shifts.

Efficient Hydraulic System

The HX450 features a robust hydraulic system operating at 17 MPa pressure, delivering smooth and responsive control. Cycle times are optimized for maximum productivity:

Raise time: 4 seconds

Dump time: 1.3 seconds

Lower time: 3.2 seconds

This efficiency translates to more work completed in less time, keeping your projects on schedule.

Impressive Load Capacity

Despite its compact size, the HX450 handles substantial loads with ease:

Operating load: 390 kg (859.8 lb)

Maximum lifting force: 450 kg (992 lb)

Bucket capacity: 0.13 m³ (4.59 ft³)

These capabilities make it ideal for material handling, excavation, and site preparation tasks.

Superior Traction with Rubber Tracks

The durable rubber track undercarriage provides excellent traction on soft ground, slopes, and uneven surfaces. With ground clearance of 120 mm (4.72 inches) and a departure angle of 23°, the HX450 maneuvers confidently over obstacles and rough terrain. Travel speed reaches up to 4.5 km/h (2.8 mph) for efficient site movement.

Excellent Dumping Characteristics

The HX450 offers superior dumping performance with:

Maximum dumping angle of 70° for clean material discharge

Rollback angle on ground of 25° for efficient bucket loading

Turn radius forward turning of 1440 mm (56.69 inches) for maneuverability in tight spaces

Durable Construction

With an operating weight of 960 kg (2116 lb), the HX450 provides excellent stability during heavy lifting operations. Every component is built to withstand the rigors of continuous use in demanding environments.

Typical Applications

The HX450 compact track loader excels in numerous applications:

Residential and commercial construction

Landscaping and site preparation

Excavation and trenching

Material handling and transport

Demolition and debris removal

Agricultural and farming operations

Snow removal and site cleanup

Operator Benefits

Versatility: Quick-attach system allows easy swapping of buckets and attachments

Maneuverability: Compact width and short turning radius access tight spaces

Stability: Low center of gravity and robust construction ensure safe operation

Comfort: Ergonomic controls and low noise levels reduce operator fatigue

Productivity: Fast cycle times and efficient hydraulics maximize output

Technical Specifications Summary

Specification Metric U.S.
Engine Power 18.2 kW (23 HP) 18.2 kW (23 HP)
Operating Weight 960 kg 2116 lb
Operating Load 390 kg 859.8 lb
Max Lifting Force 450 kg 992 lb
Bucket Capacity 0.13 m³ 4.59 ft³
Max Working Height 2474 mm 97.4 in
Max Dumping Height 1275 mm 50.2 in
Total Width 1030 mm 40.55 in
Overall Length with Bucket 2319 mm 91.3 in
Travel Speed 0-4.5 km/h 0-2.8 mph
Hydraulic Pressure 17 MPa 2465 psi
Noise Level ≤95 dB ≤95 dB
Why Choose the HX450?

The HX450 compact track loader delivers the perfect combination of power, agility, and reliability. Whether you're a contractor, landscaper, or equipment rental professional, this machine provides the performance you need to get the job done efficiently and safely.

Contact your authorized dealer today to learn more about the HX450 and how it can enhance your operations.

• Powerful Engine Performance
• Compact and Maneuverable
• High Load Capacity
• Fast Cycle Times
• Superior Traction
