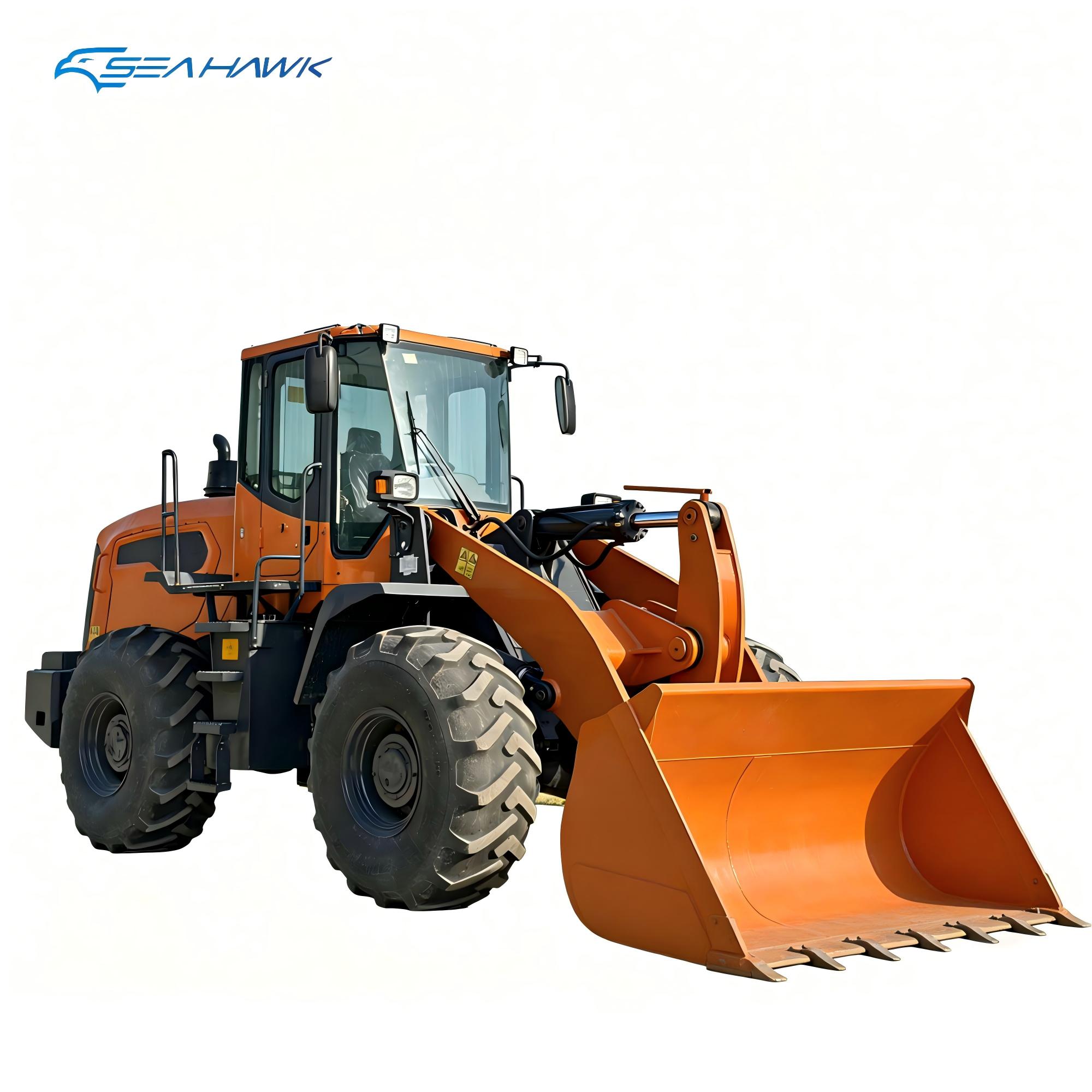

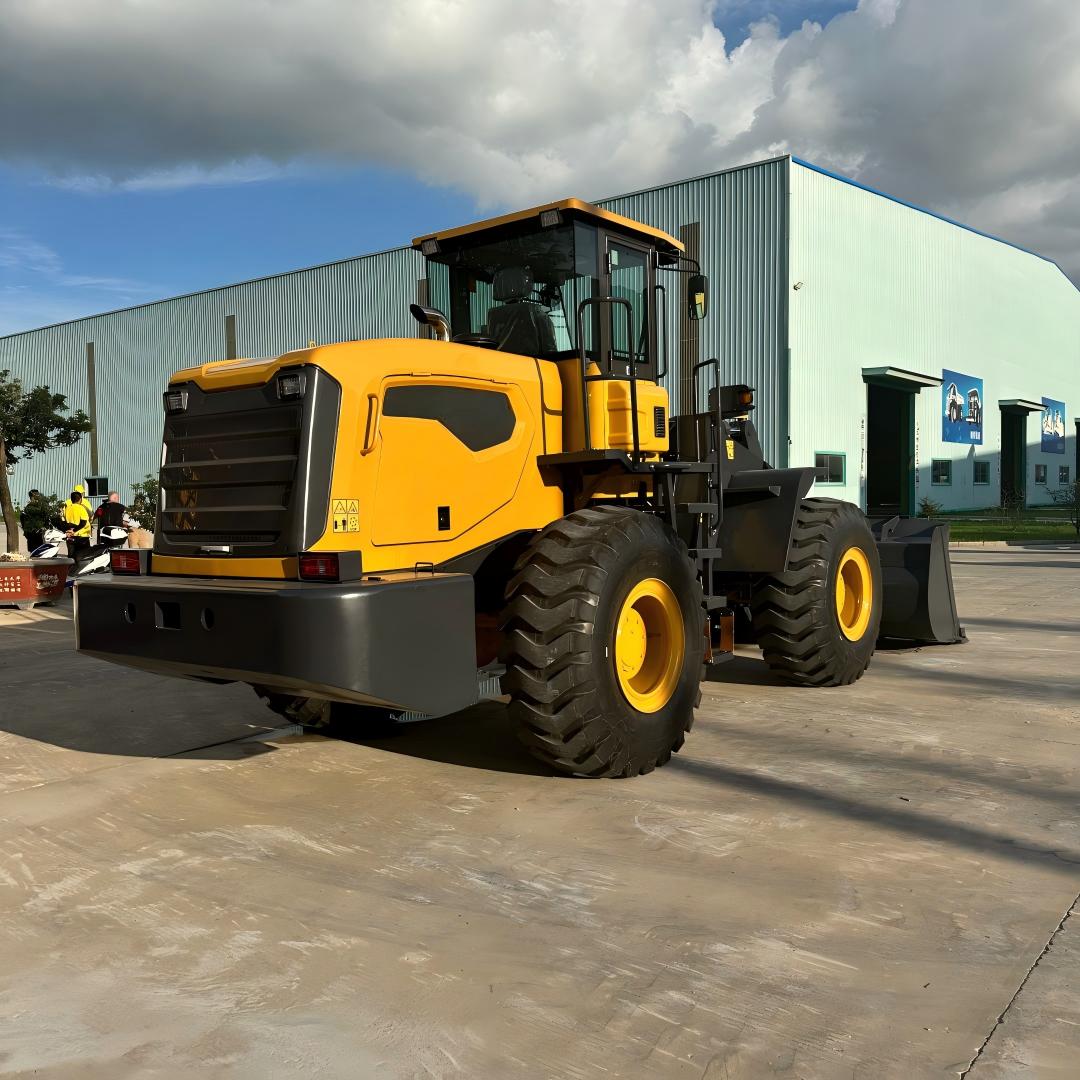

shw530 Wheel Loader

Heavy-Duty Wheel Loader – Reliable Performance for Demanding Applications

This heavy-duty wheel loader is engineered for construction, quarry, and material handling operations. Combining robust construction, powerful performance, and operator-focused design, it delivers exceptional efficiency and reliability on any job site.

Key Features

High Reliability

DOOXIN patent detachable sealing rings

Cold-pressed steel pipe joints

AVSS thin-skin wire electrical harness

Gearbox involute spline power take-off port

High Load Capacity

Reinforced front and rear frame

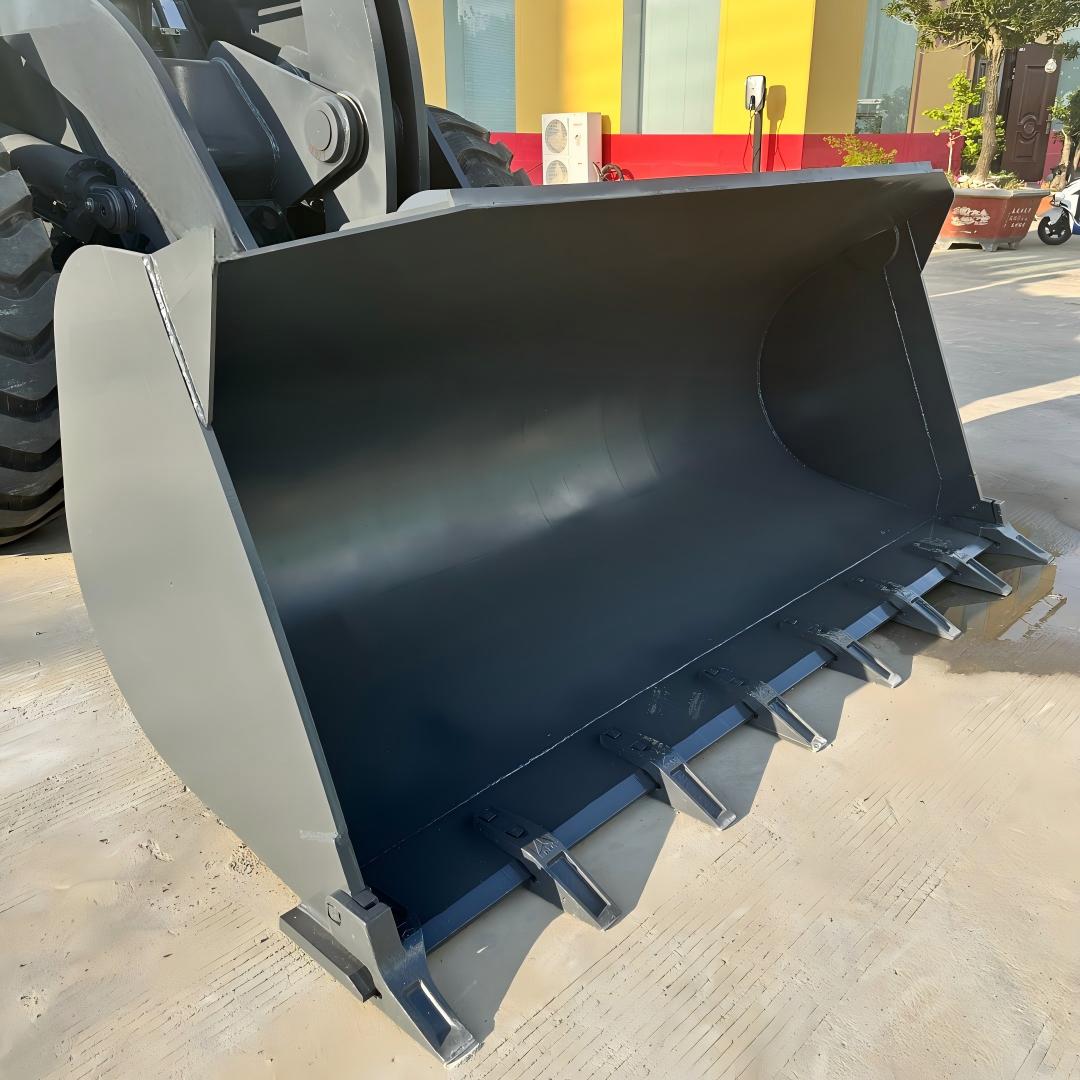

Optimized H-type bucket design

H-series reinforced front axle

High Safety

Flame-retardant cabin materials, EU standard glass

Color-coded instrument panel with electronic fuel gauge

Optional ROPS/FOPS cabin

Rear work light included

High Comfort

Large-visibility cabin with green tinted glass

Ergonomic design with adjustable steering column and pilot control

Performance Specifications

Specification Value
Power 162 kW @ 2000 rpm
Maximum Torque 950 Nm @ 1300-1600 rpm
Rated Load 5 T
Bucket Capacity 3 m³
Maximum Breakout Force 140 kN
Maximum Dumping Height 3100 mm
Corresponding Dumping Distance 1316 mm
Minimum Turning Radius 6710 mm
Wheel Tread 2150 mm
Wheelbase 3200 mm
Minimum Ground Clearance 440 mm
Tire Size 23.5-25-16PR
Cycle Times

Operation Time
Bucket Raise Time 6 s
Bucket Dump Time 1.5 s
Bucket Lower Time 4 s
Transmission and Speed

Specification Value
Gears Front 2, Rear 1
Forward Speed 36.5 km/h
Reverse Speed 16.5 km/h
Braking System

Type Specification
Service Brake Air-over-hydraulic caliper disc
Parking Brake Air release brake
Control System

Pilot control valve

Single-handle operation

Typical Applications

Construction sites

Quarry operations

Material handling

Earthmoving

Loading and transport

Contact your dealer for more information and customization options.
