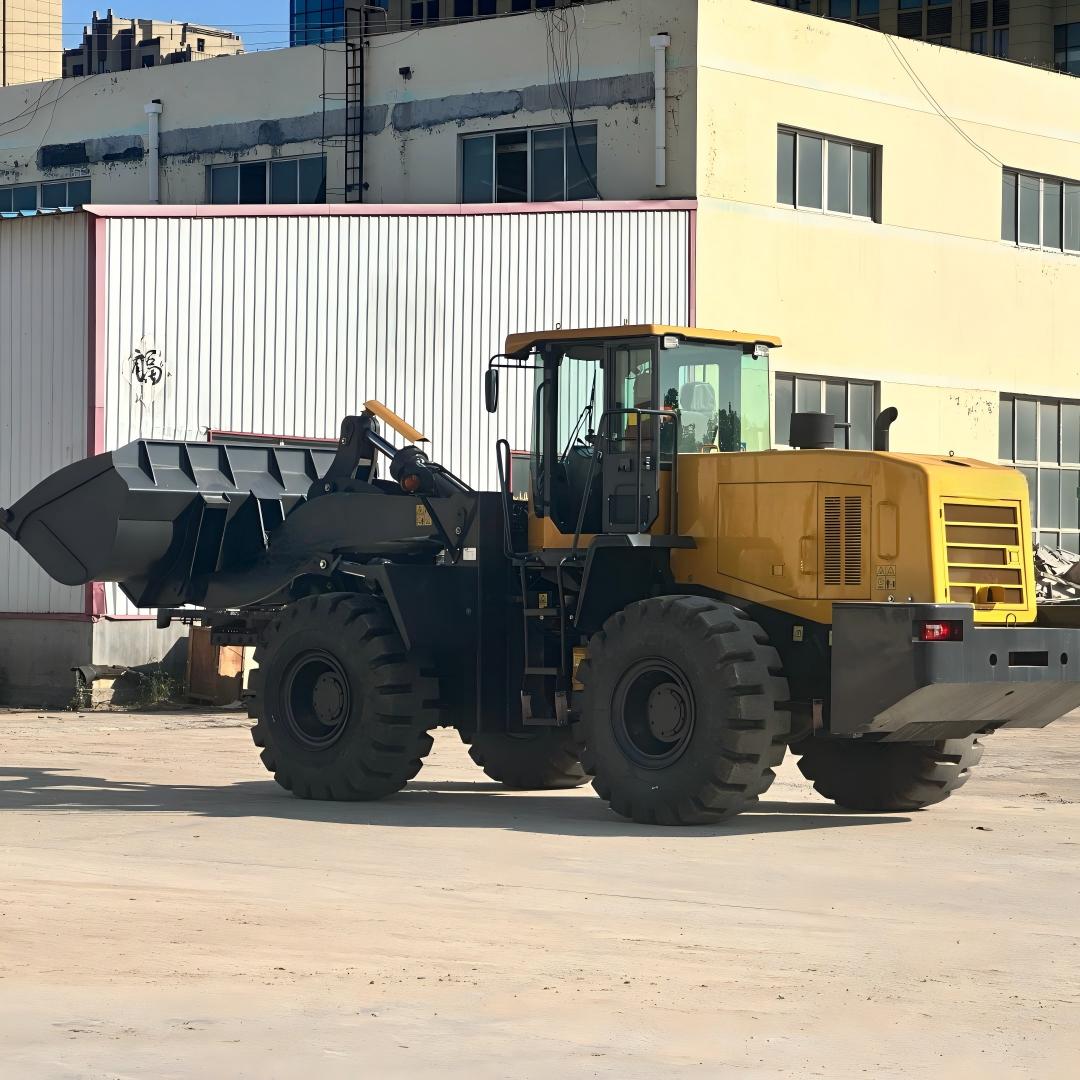

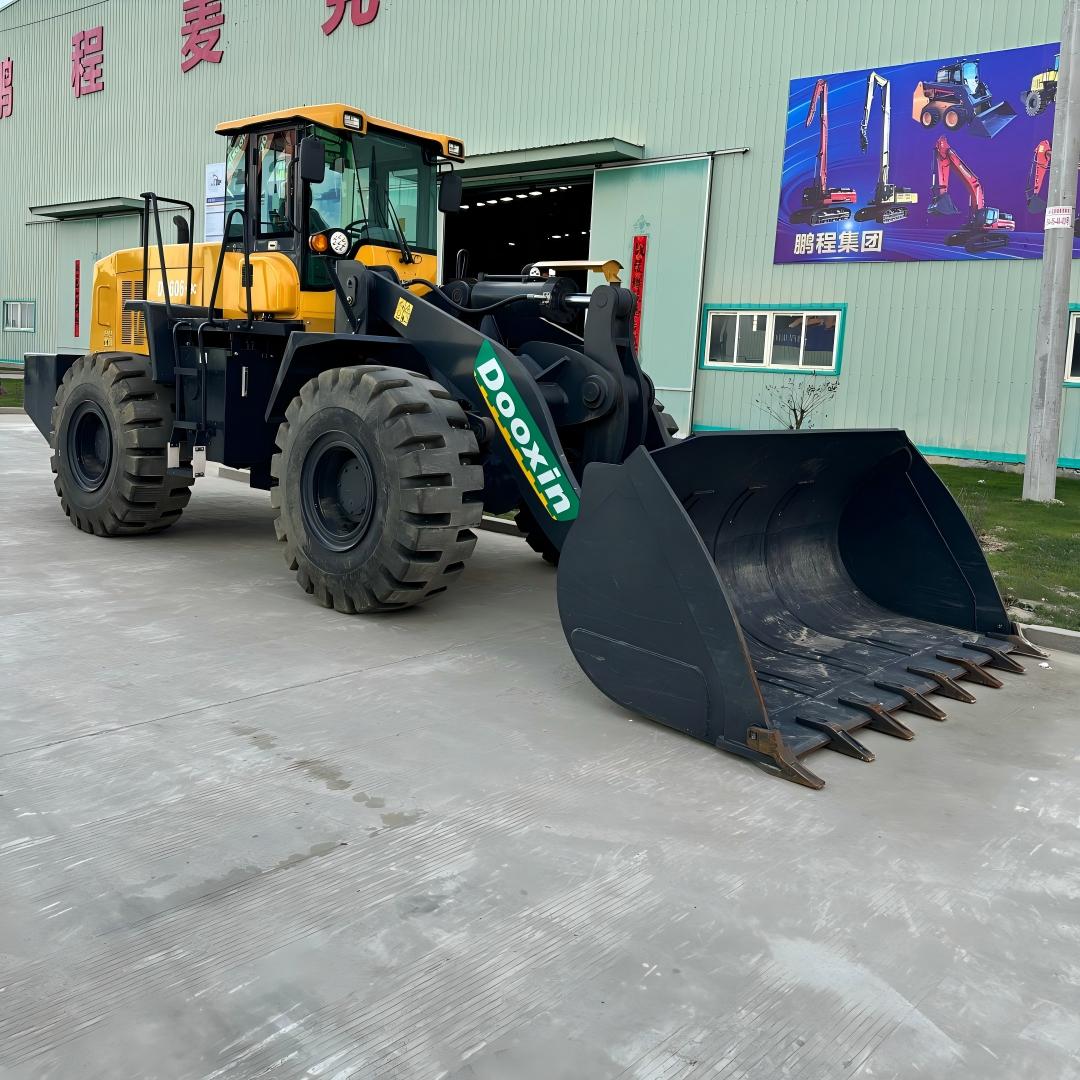

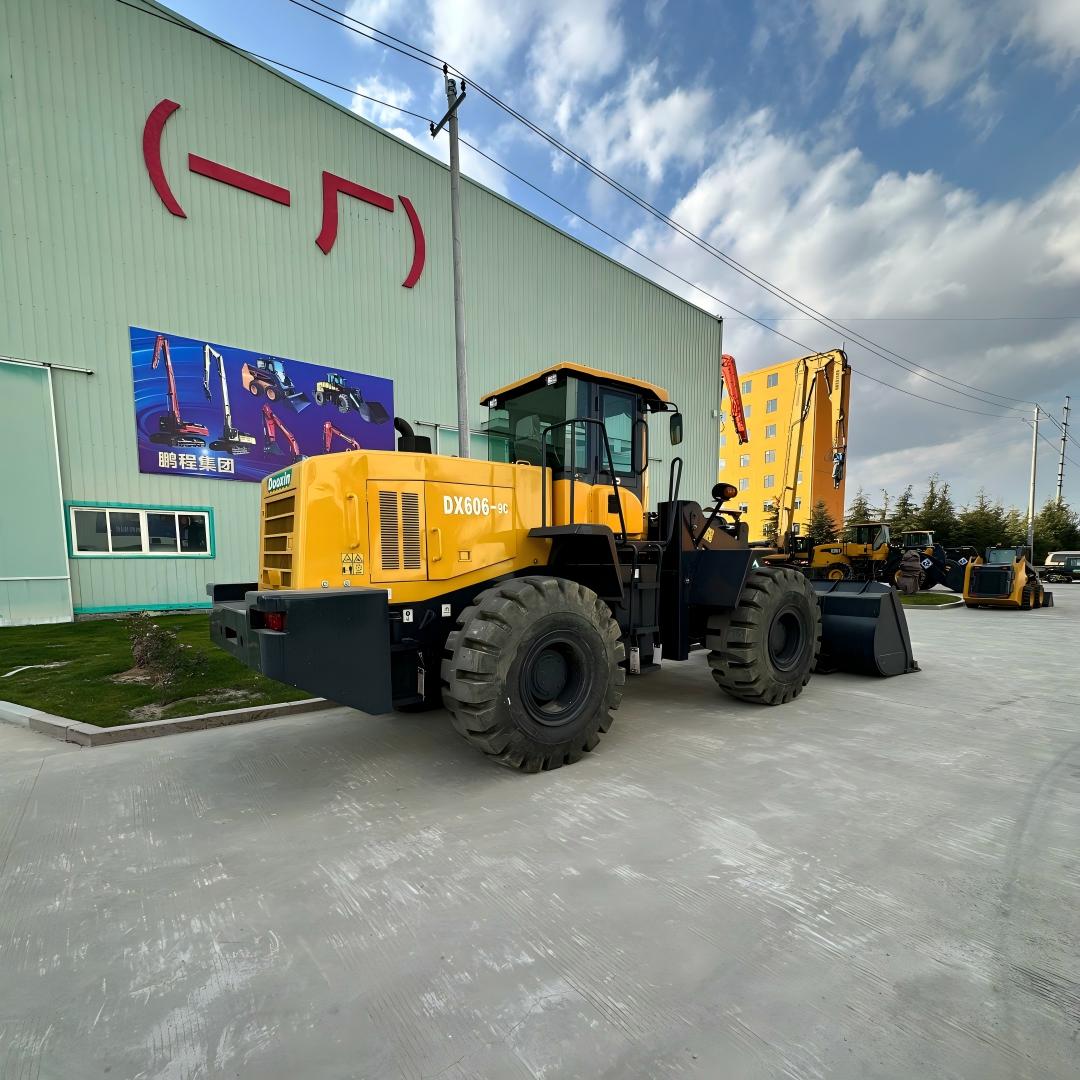

shw606 Wheel Loader

Heavy-Duty Wheel Loader – Built for Tough Jobs

This heavy-duty wheel loader is designed for construction, mining, and material handling applications, delivering powerful performance, reliable operation, and operator comfort.

Key Features

High Reliability

DOOXIN patent detachable sealing ring

Cold-pressed steel pipe joints

AVSS thin-skin wire electrical harness

High Load Capacity

L-series fork structure front and rear frame

Optimized H-type bucket design

High Safety

Flame-retardant cabin materials, EU standard glass

Instrument panel with color-coded alerts and electronic fuel gauge

Optional ROPS/FOPS cabin

Rear work light included

High Comfort

Large-visibility cabin with green tinted glass

Ergonomic design with adjustable steering column and pilot control

Specifications

Specification Value
Operating Mass 20400 kg
Rated Power 175 kW
Bucket Capacity 5 m³
Rated Load 6000 kg
Max Breakout Force 175 kN
Dumping Height 3330 mm
Dumping Distance 1330 mm
Overall Length 8820 mm
Overall Width 3128 mm
Overall Height 3465 mm
Turning Radius 7470 mm
Fuel Tank Capacity 340 L
Hydraulic Tank Capacity 305 L
Transmission ZF
Gears 3 forward, 4 reverse
Travel Speed 6.1 / 10.9 / 22 / 38 km/h
Tractive Capacity 173 kN
Tire Specification 23.5-25-20PR
Lift Time 6.5 s
Total Cycle Time 10.5 s
Typical Applications

Large-scale construction

Mining and quarry operations

Heavy material handling

Earthmoving and excavation

Contact your dealer for more information.

• Powerful Performance
• High Reliability
• Excellent Load Capacity
• Advanced Safety Features
• Superior Operator Comfort
