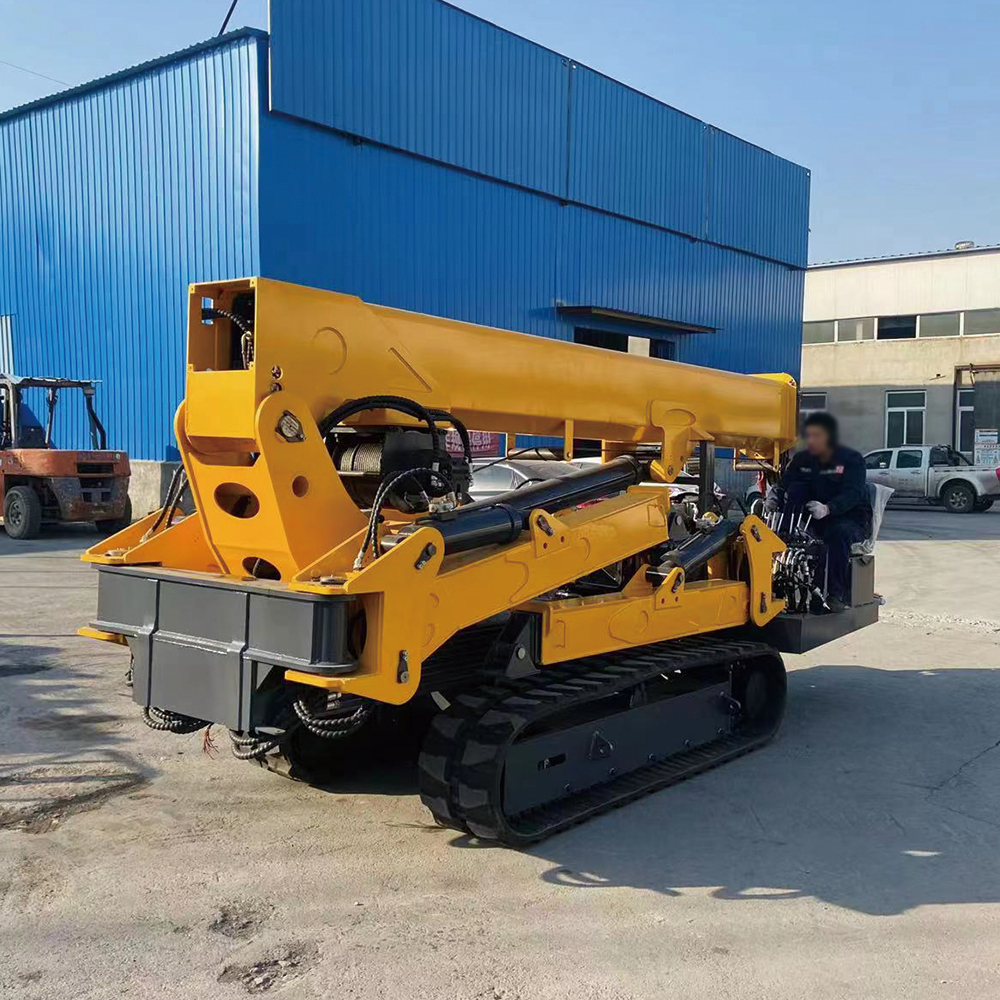

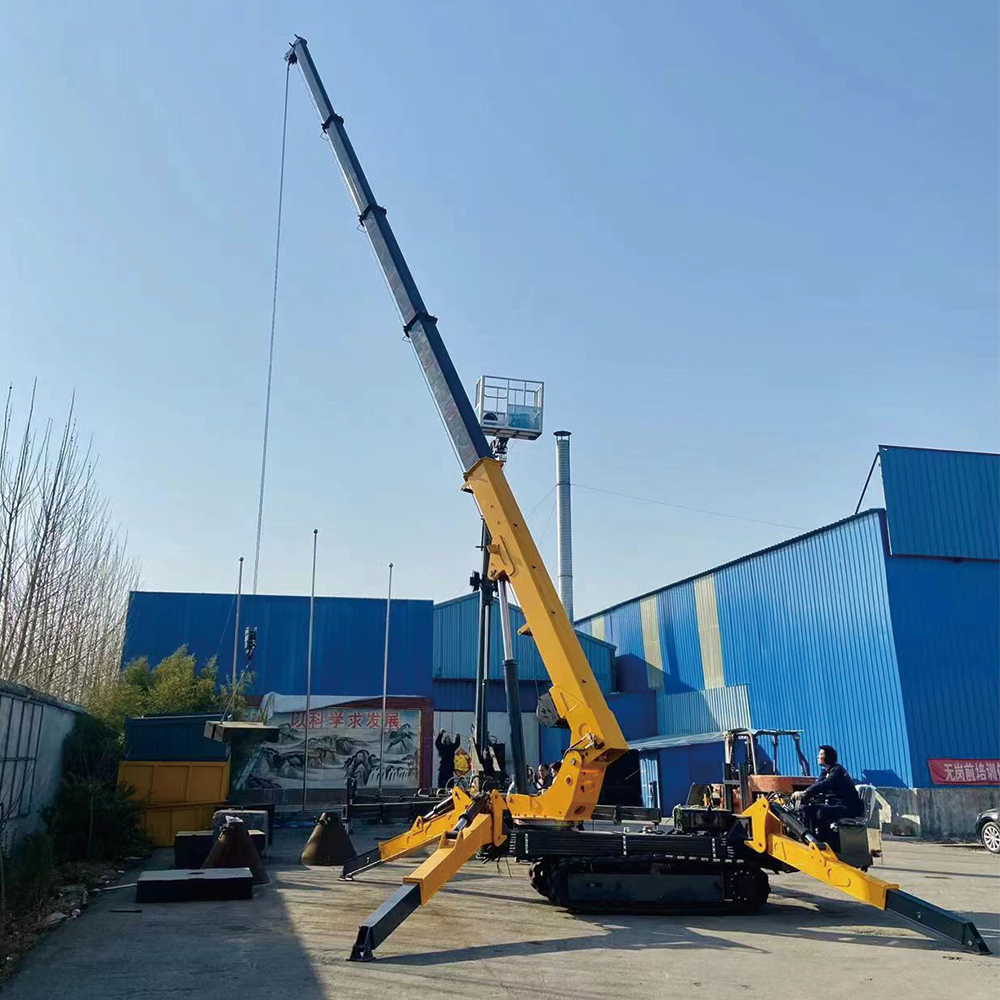

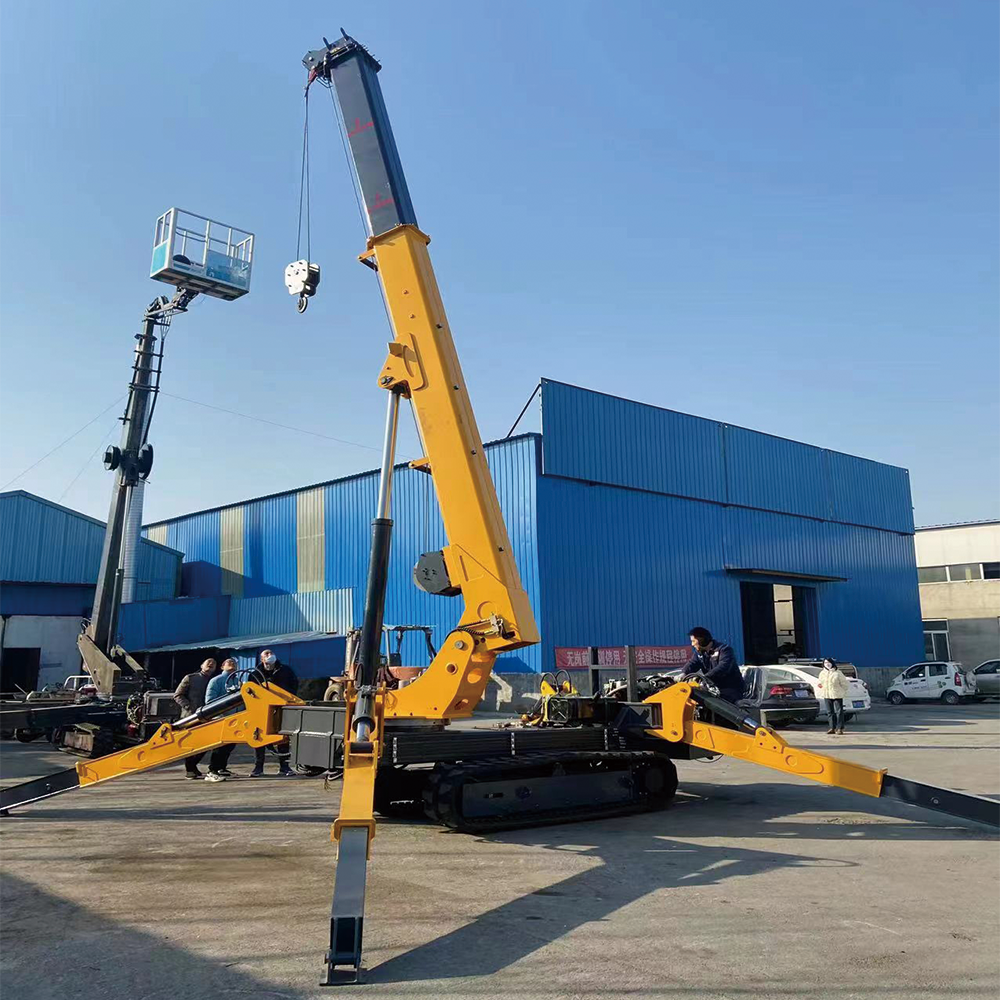

8-Ton Spider Crane – Compact & Powerful
The 8-ton spider crane from Jining Jukun Construction Machinery is a versatile and compact lifting solution ideal for confined spaces and challenging terrains.
Key Features:
Max Lifting Capacity: 8 tons
Boom Length: 4.7m – 17.4m (5-section hexagonal boom)
Max Working Radius: 16.8m (with 0.35T load)
Max Lifting Height: 18.5m above ground | 20.5m below ground
Hoist Speed: 10m/min (4-rope configuration)
Swing Angle: 360° continuous rotation
Outriggers: Manual swing-out + hydraulic extension with auto support
Travel Speed: 0–2.5 m/s (hydraulic motor-driven)
Gradeability: 20° (36° max)
Engine: Changchai 490 diesel, 48L fuel tank
Machine Weight: 7.8 tons
Dimensions: 5.3m (L) × 1.6m (W) × 2.2m (H)
Ideal for indoor construction, narrow job sites, and precision lifting tasks.
| Parameter | Value |
|---|---|
| Max Lifting Capacity | 8 tons |
| Boom Type | 5-section hexagonal telescopic boom |
| Boom Length Range | 4.7 m – 17.4 m |
| Max Working Radius | 16.8 m (with 0.35T load) |
| Max Lifting Height (Above Ground) | 18.5 m |
