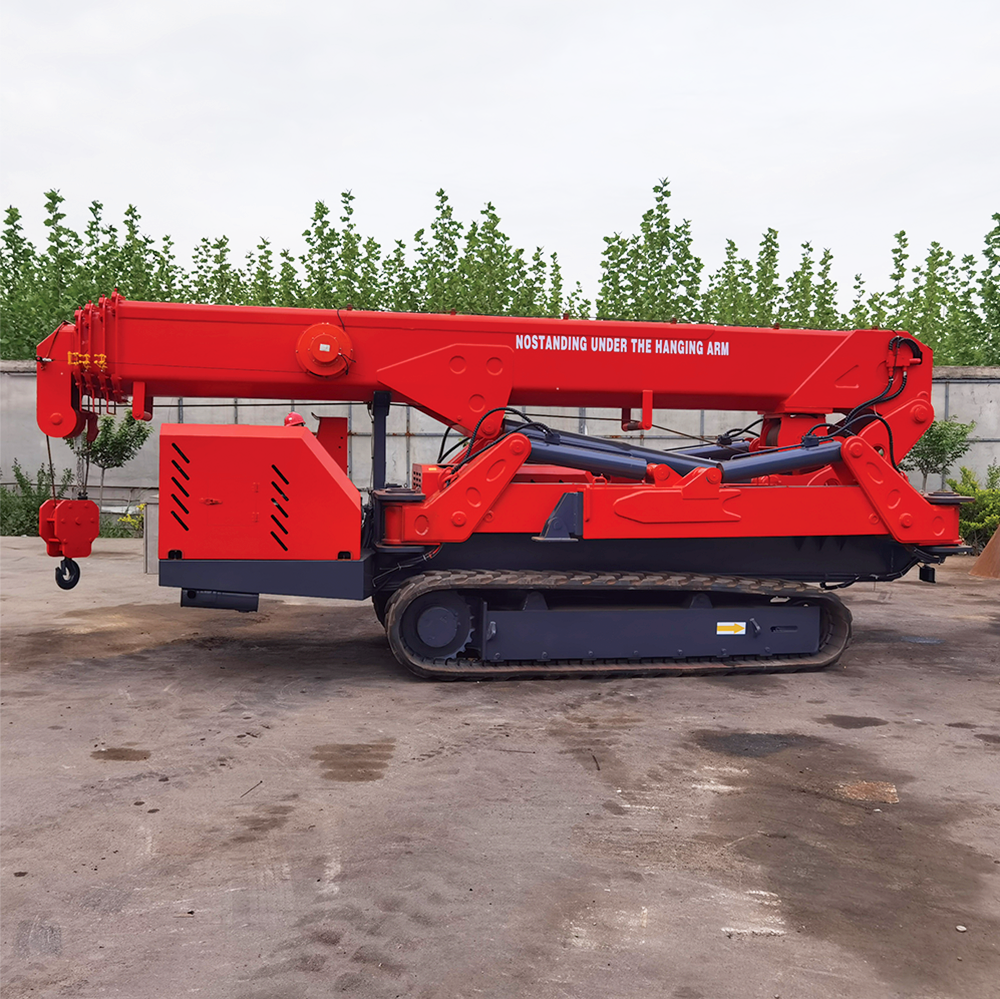

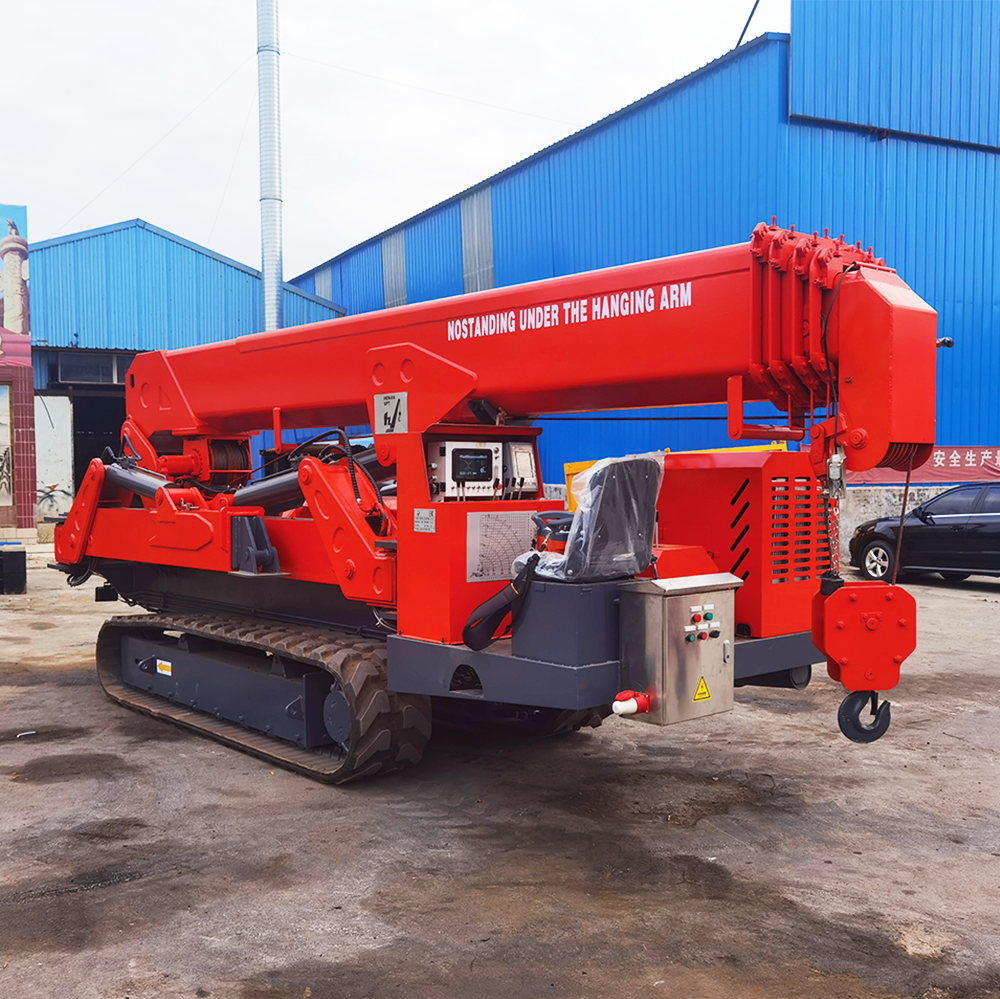

sh120 Spider Crane

12-Ton Spider Crane – High Performance for Heavy Lifting in Confined Areas

The 12-ton spider crane from Jining Jukun is a robust and compact lifting solution designed for demanding applications in tight spaces such as industrial plants, construction sites, steel structure erection, and infrastructure projects.

Key Features:

Max Lifting Capacity: 12 tons

Boom Type: 5-section hexagonal telescopic boom

Boom Length Range: 5.8 m – 20.0 m

Max Working Radius: 19.5 m (with 0.8T load)

Max Lifting Height (Above Ground): 21.8 m

Max Lifting Depth (Below Ground): 24.0 m

Hoist Speed: 22 m/min (4-rope)

Wire Rope Specification: Φ14 mm × 120 m

Swing Angle: 360° continuous

Swing Speed: 38 sec/revolution

Outrigger Type: Manual swing-out + hydraulic extension + auto support (two-stage)

Max Outrigger Spread: Left/Right: 8200 mm / Front/Rear: 7400 mm

Travel Drive: Hydraulic drive

Travel Speed: 0 – 3 km/h

Gradeability: 20° (36°)

Engine Model: Changchai 4G33 diesel

Start Type: Electric start

Fuel Type: Diesel

Operation Mode: Manual + remote control (boom, outriggers, and travel available via remote)

Machine Weight: 11.5 tons

Dimensions (L×W×H): 6.2 m × 1.78 m × 2.35 m

Designed for powerful performance in space-constrained environments, this crane combines mobility, stability, and precision for a wide range of heavy lifting tasks.

• High Lifting Capacity
• Extended Working Range
• 360° Continuous Rotation
• Dual Operation Modes
• Compact & Powerful Design
