3-Ton Crawler Spider Crane – Jining Jukun Construction Machinery A compact, powerful spider crane designed for lifting in confined spaces like factories, narrow alleys, and indoor sites. Key Specs: Max Capacity: 3 tons Max Lifting Height: 9.9m Max Working Radius: 8.6m (@0.4t) Dimensions: 2.95m (L) x 0.9m (W) x 1.56m (H) Weight: 2.7 tons Main Features: 5-section pentagonal boom for strength Dual po...

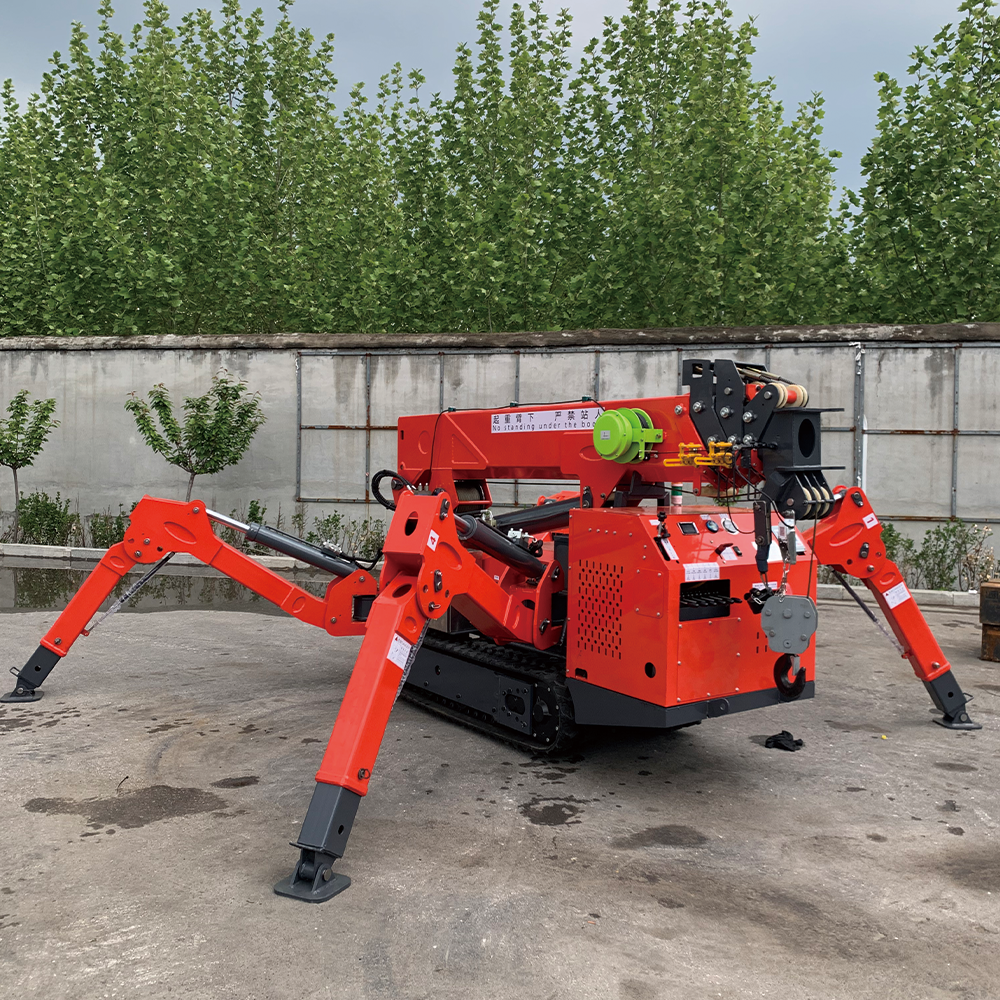

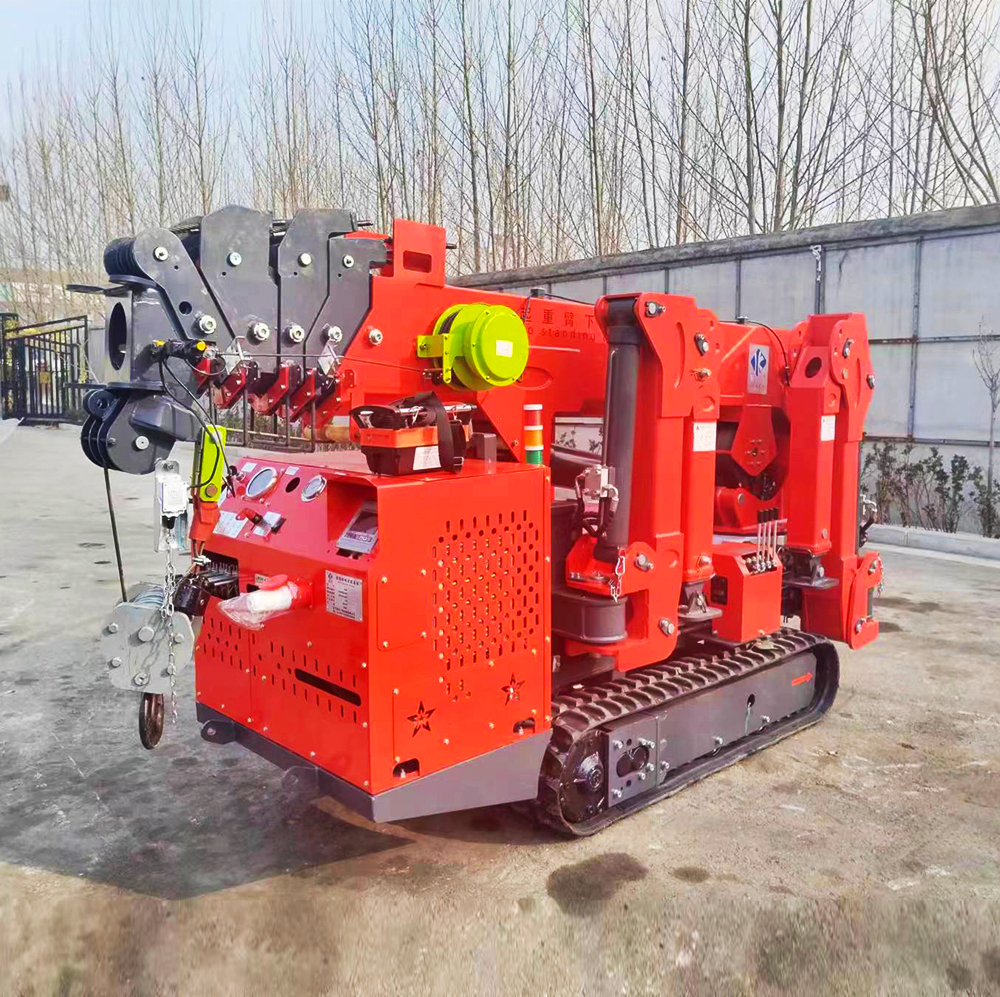

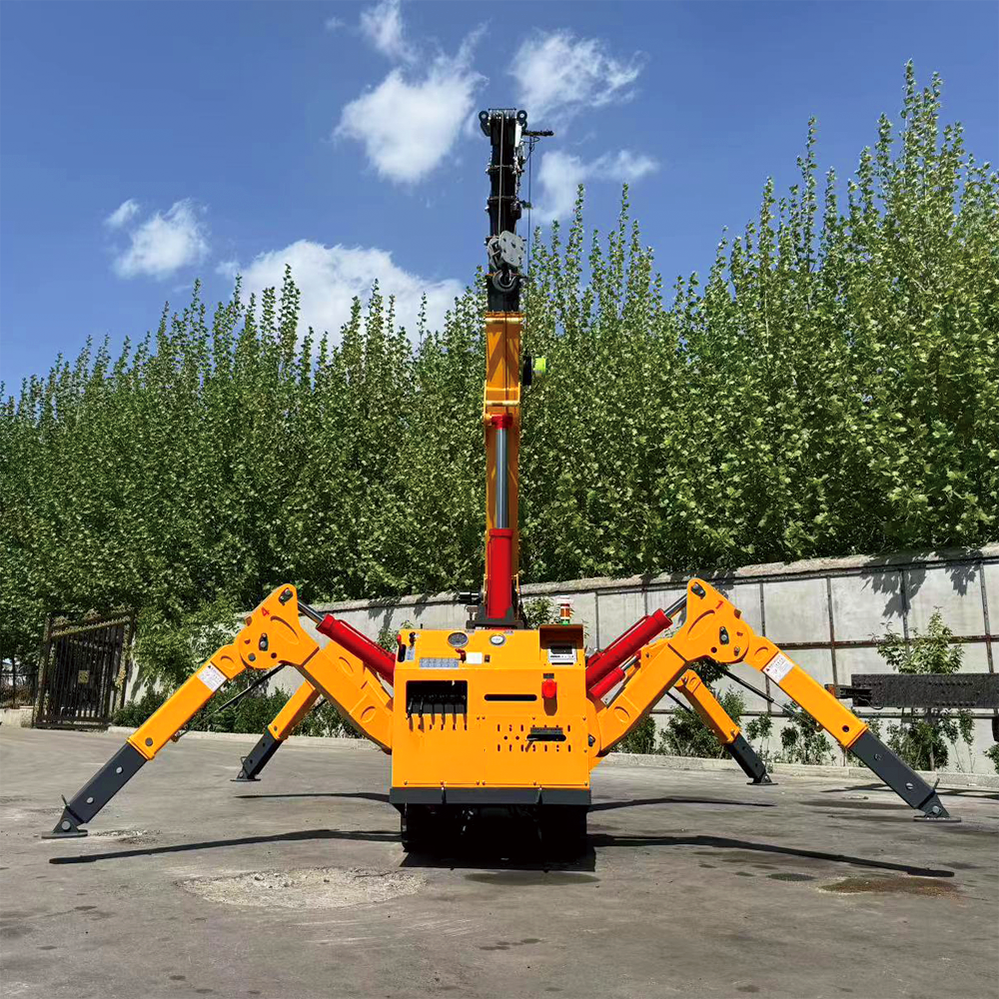

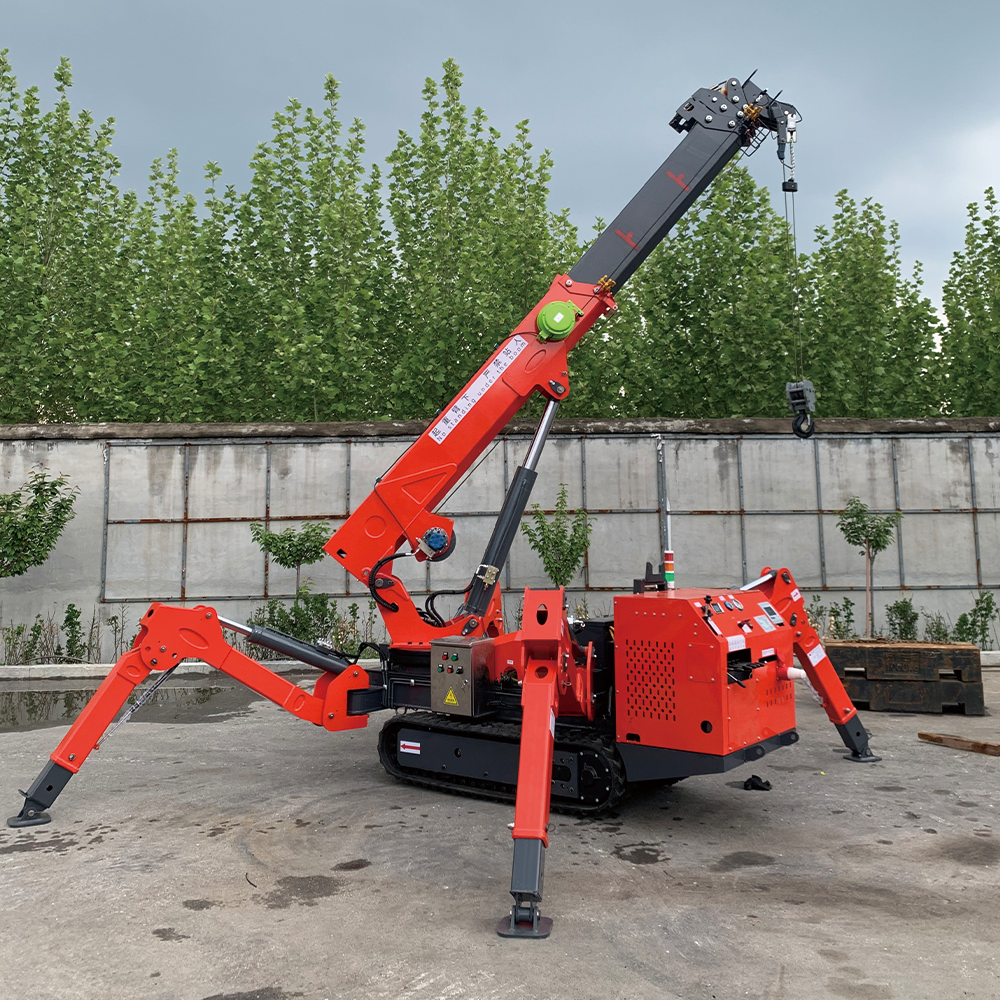

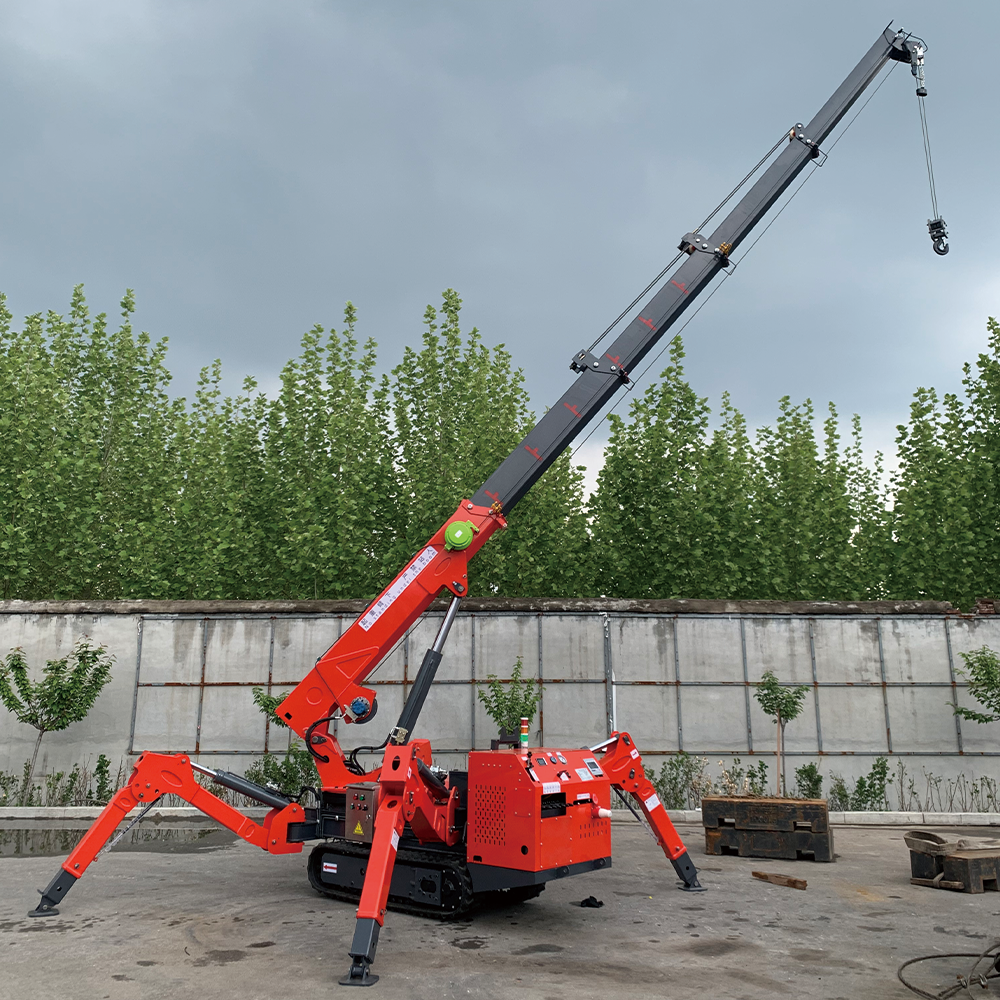

3-Ton Crawler Spider Crane – Jining Jukun Construction Machinery
A compact, powerful spider crane designed for lifting in confined spaces like factories, narrow alleys, and indoor sites.
Key Specs:
Max Capacity: 3 tons
Max Lifting Height: 9.9m
Max Working Radius: 8.6m (@0.4t)
Dimensions: 2.95m (L) x 0.9m (W) x 1.56m (H)
Weight: 2.7 tons
Main Features:
5-section pentagonal boom for strength
Dual power: Diesel engine + 380V electric motor
Hydraulic travel, max speed 2.5 km/h
Manual + hydraulic outriggers for stability
40m steel wire rope (Φ8mm)
360° continuous rotation
Built with patented technology from Jining Jukun, including innovations in boom control, balance, and转向 mechanisms.
Ideal for efficient, safe lifting where space is limited.
| Parameter | Value |
|---|---|
| Rated Capacity | 3 tons |
| Max Lifting Height | 9.9 m |
| Max Working Radius | 8.6 m ( 0.4t) |
| Max Lifting Depth | 10 m |
| Overall Length | 2.95 m |
| Total Weight | 2.7 tons |
