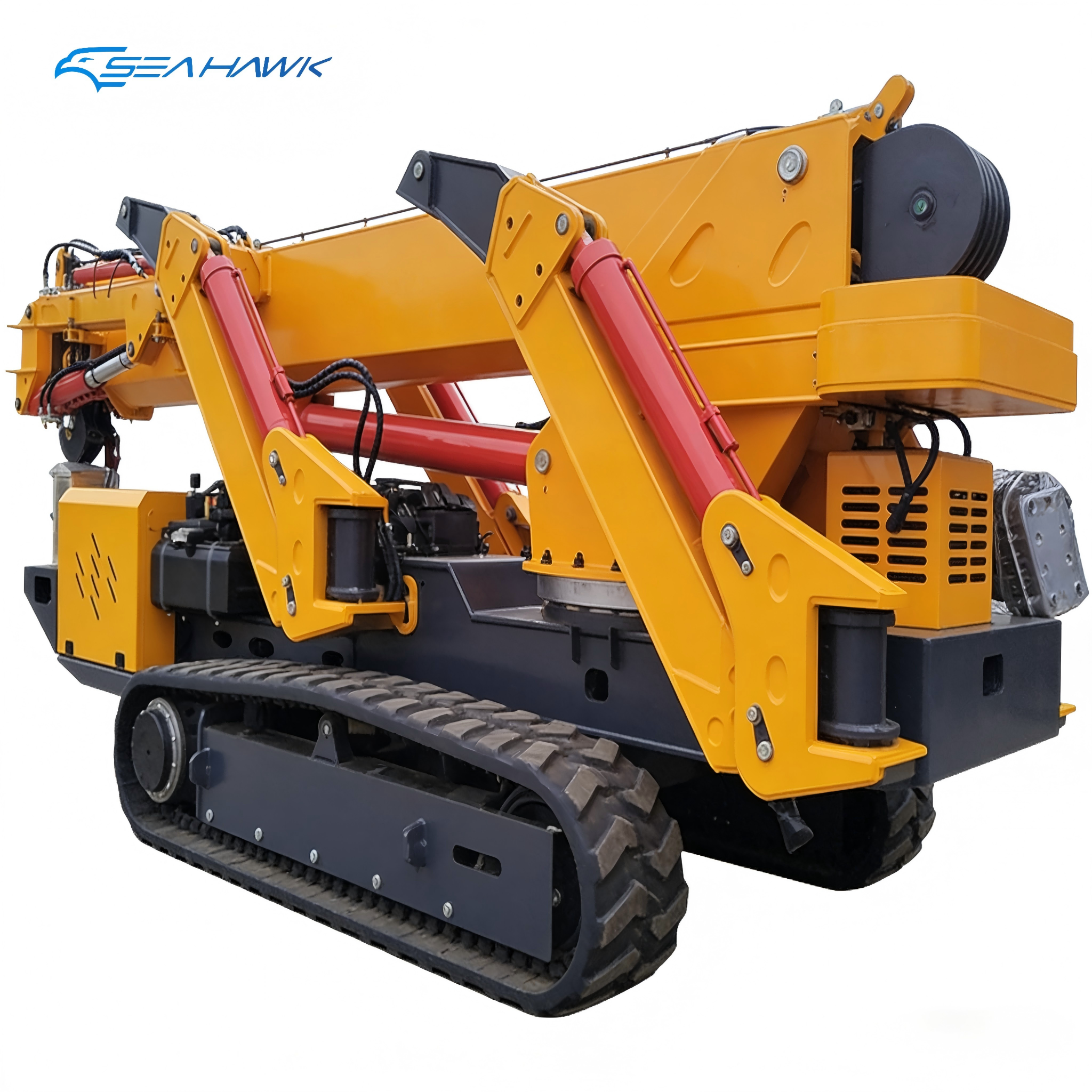

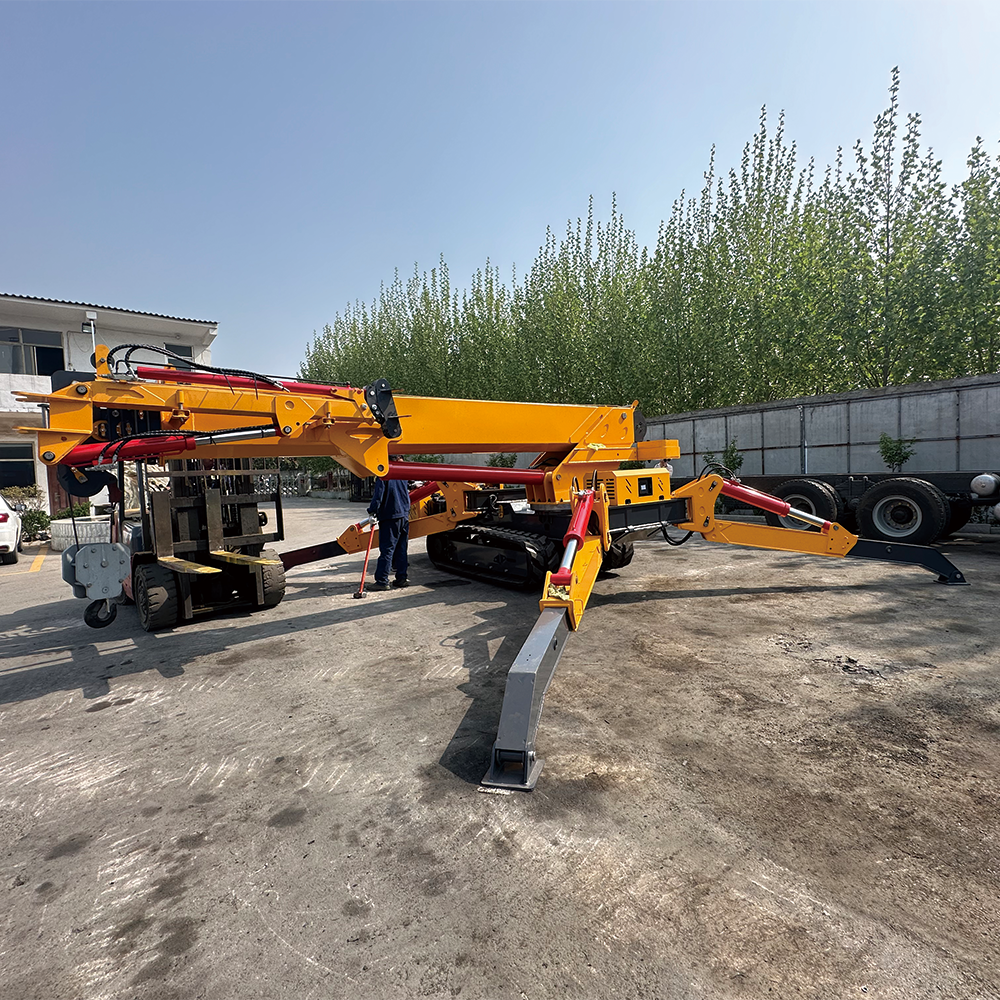

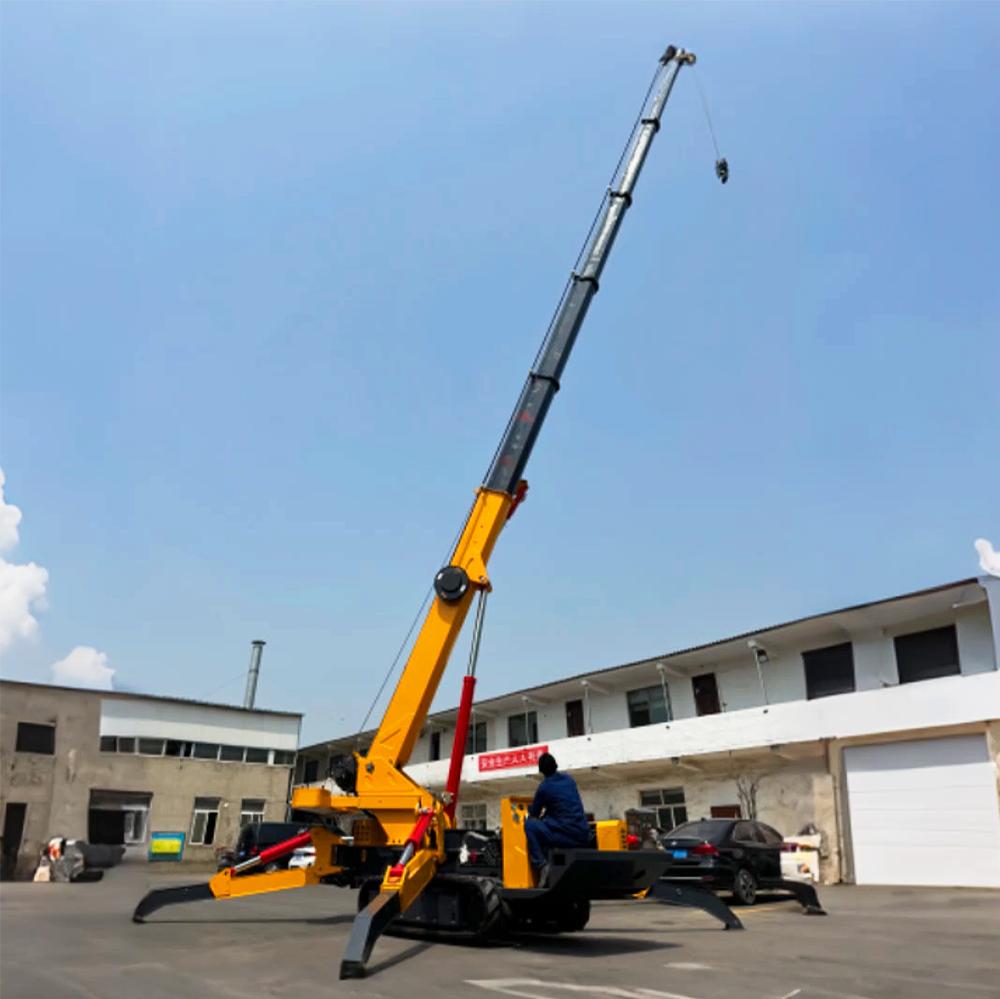

10-Ton Spider Crane – Powerful & Versatile for Confined Spaces

The 10-ton spider crane from Jining Jukun is a compact yet high-performance crane engineered for precision lifting in tight and complex job sites, such as substations, industrial workshops, rooftop construction, and steel structure installation.

Key Features:

Max Lifting Capacity: 10 tons

Boom Type: 6-section hexagonal telescopic boom

Boom Length Range: 5.0m – 18.7m

Max Working Radius: 18.7m

Max Lifting Height (Above Ground): 19.9m

Max Lifting Depth (Below Ground): 21.0m

Hoist Speed: 10m/min (4-rope)

Swing Angle: 360° continuous rotation

Outriggers: Manual swing-out + hydraulic extension with auto support (two-stage legs)

Max Outrigger Spread: 7,000mm (left/right) | 6,000mm (front/rear)

Travel Speed: 0 – 3 km/h (hydraulic motor with plunger pump)

Gradeability: 20° (36%)

Engine: Changchai 490 diesel, 48L fuel tank

Battery Voltage: 24V

Operating Modes: Manual + remote control

Machine Weight: 10 tons (including 1-ton counterweight)

Dimensions (L×W×H): 5.7m × 1.6m × 2.15m

Additional Features: Moment limiter, proportional valve remote control

Ideal for indoor and outdoor use where space is limited but power and stability are required.

• Compact & Lightweight Design
• High Lifting Capacity
• Wide Working Range
• 360° Continuous Rotation
• Dual Operation Modes
